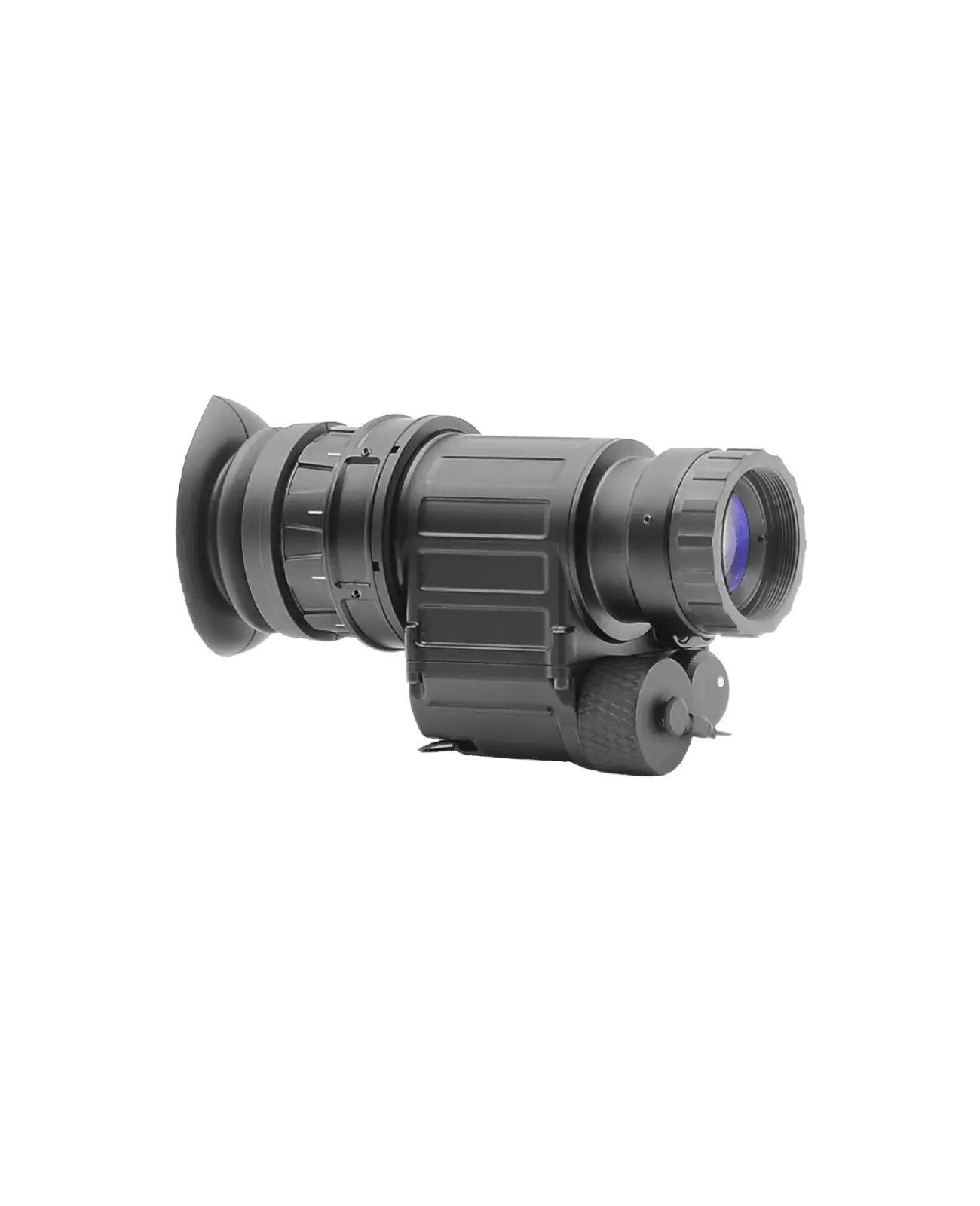

GSCI-PVS-14C Night Vision Monocular

The GSCI-PVS-14C is a highly versatile, user-friendly night vision monocular that combines all the legendary capabilities of the PVS-14 series with the latest technological advancements. Built for ground forces, law enforcement, and tactical professionals, the PVS-14C delivers unmatched performance, durability, and flexibility for nighttime operations. Equipped with high-quality optics and select-grade Image Intensifier Tubes (IIT), it performs exceptionally even in the most challenging low-light conditions.

Features:

• Ergonomic & Compact: Lightweight and rugged, designed with GSCI’s proprietary LDH™ (Light Durable Housing) for maximum comfort and ease of use.

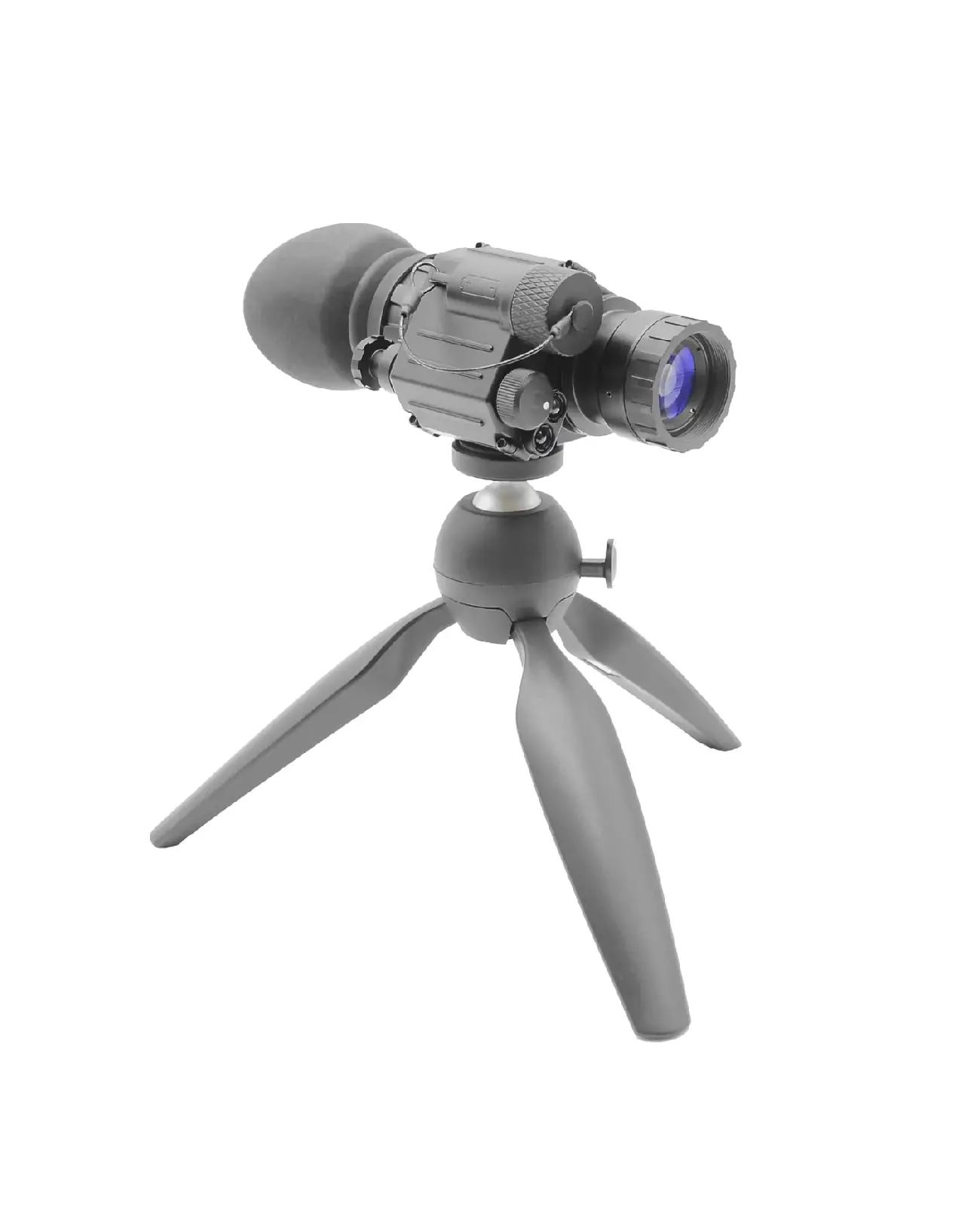

• Flexible Mounting: Compatible with head gear, helmet mounts, and weapon mounts via HUB-14 adapter; 1/4-20 tripod threads for optional accessories.
• Advanced Optics: Accepts various afocal lenses (3×, 5×) and custom magnifications (4×, 7×, 10×); optional camera adapters available.
• Built-in IR Illuminator: Short-range 905 nm IR with pull-switch to prevent accidental activation; invisible to the naked eye.
• UBX™ Digital Electronics: Extended battery life, safe IIT startup, polarity protection, IR control, and light overload sensor.
• Manual Gain Control: Prevents “high light blindness” in dark operations (not used with auto-gated tubes).
• Durable & Rugged: MIL-STD-810E compliant; submersible IP67; resistant to shock, recoil up to 500 G, extreme temperatures, and environmental conditions.

Technical Specifications:

• Magnification: 1×
• Objective Lens: 26 mm
• Eye Relief: 27 mm
• Field of View: 40°
• Range of Focus: 20 mm to ∞
• Diopter Adjustment: +2/-6
• Battery: 1× AA (30+ hrs) or CR123 (50+ hrs)
• Weight: ~330 g (with IIT)
• Dimensions: 110 × 65 × 55 mm
• Operating Temp: -51°C to +49°C

Image Intensifier Tube Options:

• PVS-14C-GA1: Gen. 3, FOM 1260–1599
• PVS-14C-GA2: Gen. 3, FOM 1600–1799
• PVS-14C-GA3: Gen. 3, FOM 1800–2000

IMAGE INTENSIFIER TUBES FEATURING:
*with selected IIT

• Resolution: 57–73* lp/mm
• SNR: 19–28*
• High Photoresponce*
• Small Halo*
• Auto Gated*
• FOM: up to 2000

Optional Accessories:

• Helmet Mount (flip-up)
• Head Gear (flip-up)

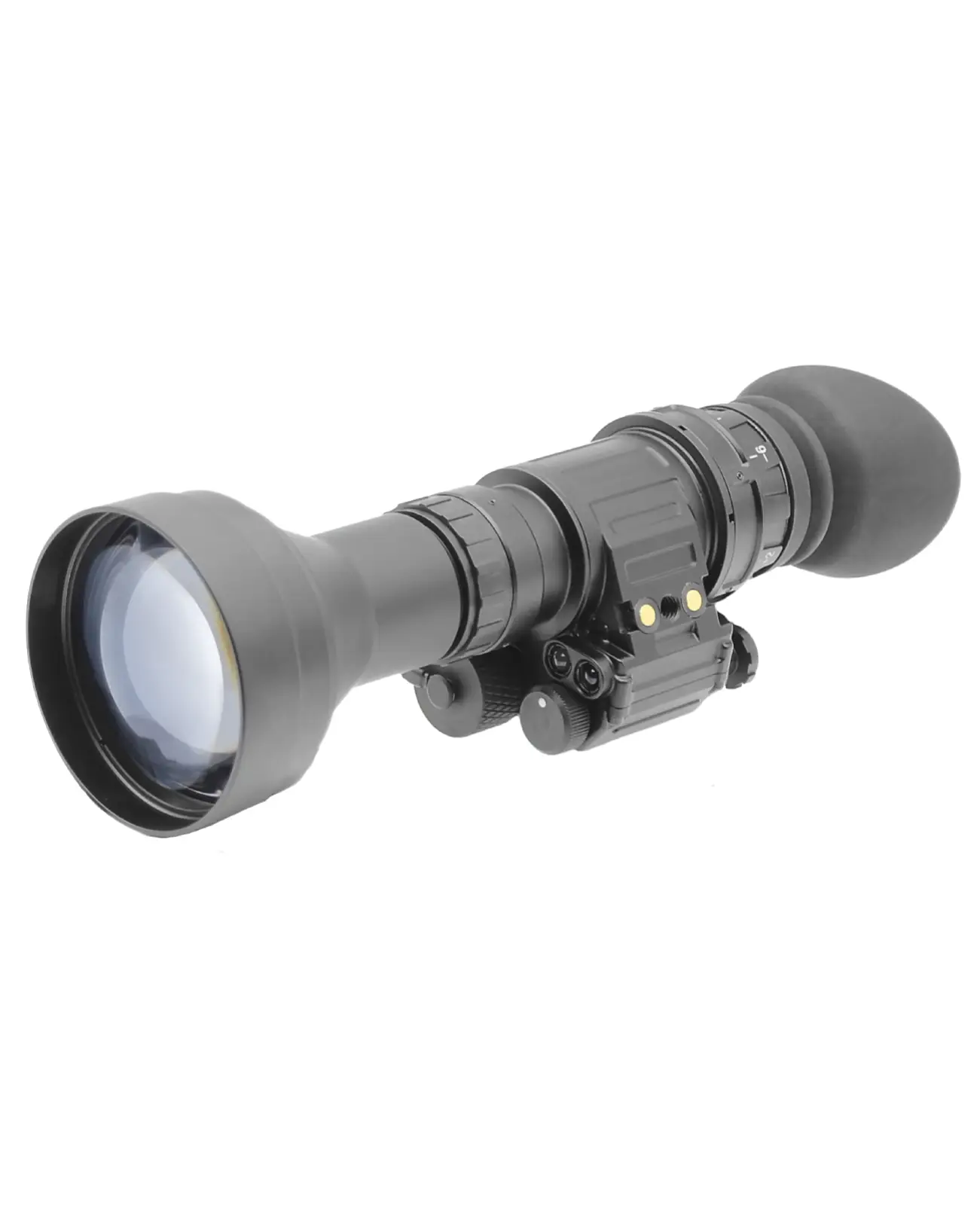

• 3× or 5× Snap-On / Screw-In Magnifier Lenses

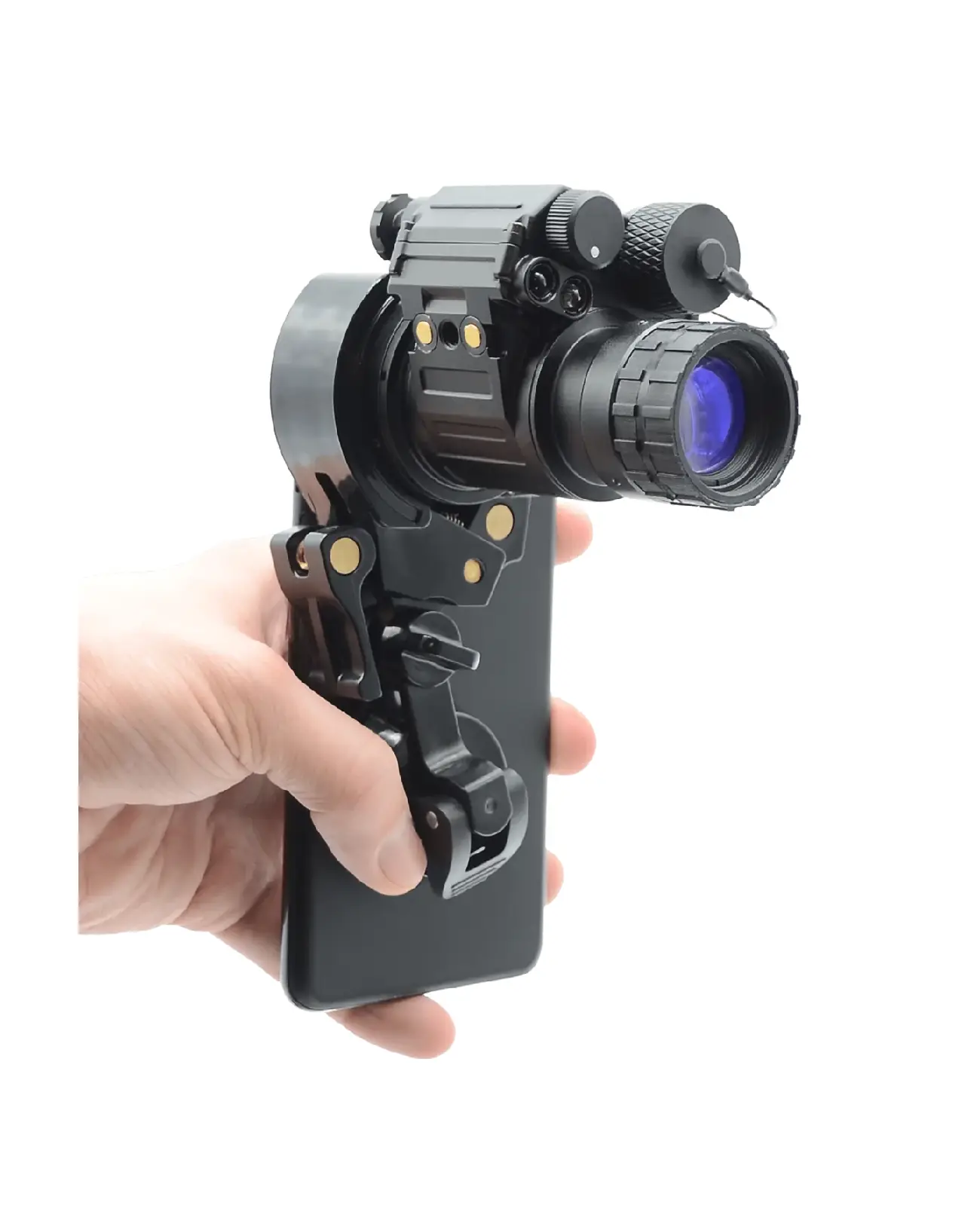

• Camera Adapter for 37/52 mm lenses|

The kit includes goggles, a neck cord and shoulder strap, flip-up head gear, demist shields, two shielded rubber eyecups, a carrying pouch, a user manual, and comes with a 1-year manufacturer warranty.
